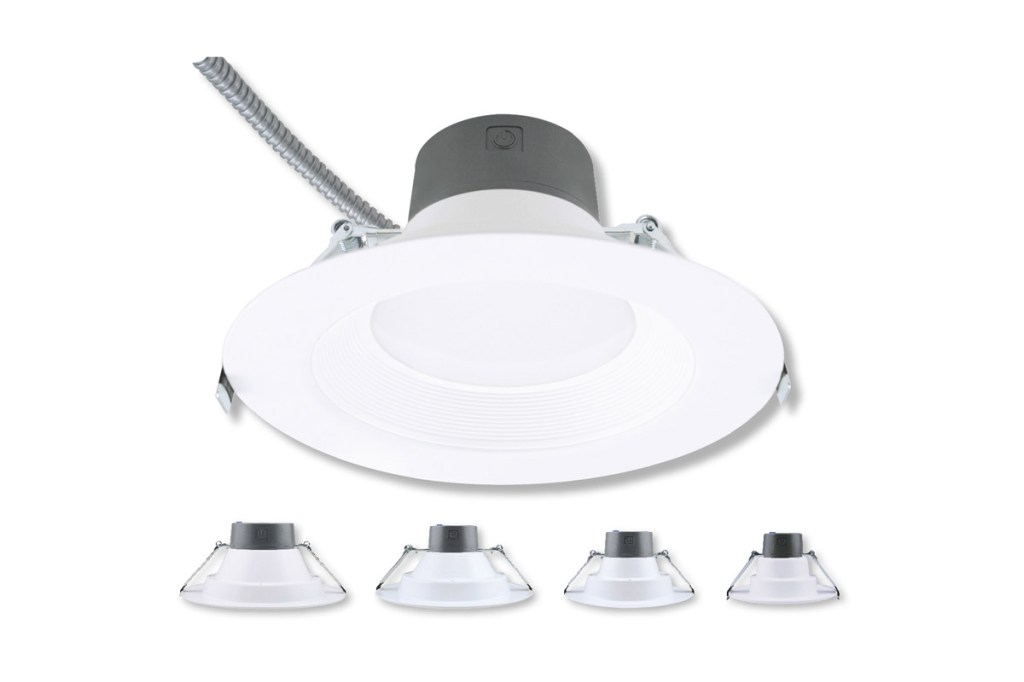

CDL Innofit Series, Green Creative
Green Creative’s commercial downlight line (CDL) is offered in a range of apertures—4″, 6″, 8″, and 9.5″. To determine lumen output, the luminaires have a field-adjustable selector switch for low, medium, and high wattage levels. Spring-action clips secure the fixtures for retrofit installations.
The 9.5″ CDL 45W fixture is available in 2700K, 3000K, 3500K, and 4000K at a CRI of 80. The luminaire comes standard at 45W and the power consumption can be reduced by selecting either a medium (32W) or low (23.5W) setting—which replace 57W and 42W fixtures respectively—on the field-adjustable selector. The luminaire provides 2,000, 2,500, or 3,200 delivered lumens, depending on wattage, and has a 110-degree beam-spread. The 9.5″ CDL requires 120V-to-277V input; dimming options include zero-to-10V down to 10-percent. gc-lighting.com
