Suspended Double Box 107, Vode Lighting

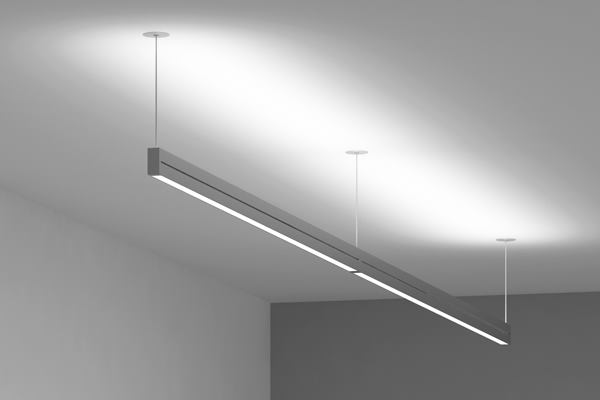

With a minimalist design, this suspended linear LED luminaire has a modular snap-fit assembly. Its rectangular profile measures 2.48″ tall by 1.14″ wide and it is made of extruded and machined aluminum. It mounts via field-adjustable suspension cables to a ceiling-mounted junction box or driver housing. This system can be specified in lengths from 1′ to 8′, continuous runs, as well as non-standard configurations. Two LED board types—a zipper board with 72 diodes per foot and a button board with six diodes per foot—offer multiple beam spreads, distributions, and up/down configurations. LEDs are offered in 2700K, 3000K, 3500K, and 4000K with a CRI of 95 in up to 2,076 lumens per linear foot and 90 lumens per watt. Remote and integral drivers offer several dimming options down to 1%. Lenses are high-impact, extruded acrylic glass, which come in clear and diffuse finishes. An aluminum baffle is also available. Finishes include standard clear anodized aluminum, black anodized, and painted white. The fixture is listed for dry locations only. vode.com
