Pilot, Insight Lighting

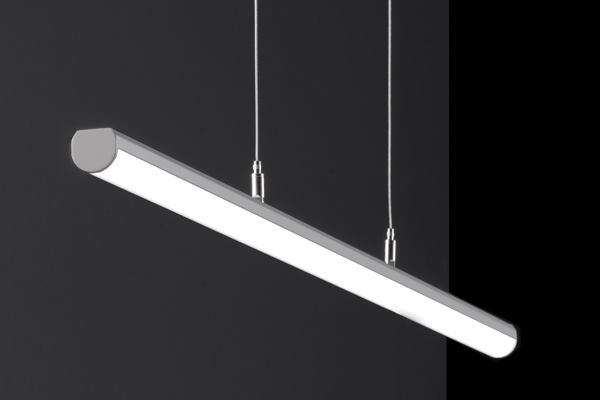

Measuring approximately 3″ tall by 3″ wide and with a translucent dome lens, this linear LED luminaire is suitable for task or cove applications. Manufactured from aluminum extrusions with a one-piece extruded acrylic lens, beam distributions range from 7 degrees up to 120 degrees in addition to an asymmetric option. Wattages from 3.5W per linear foot to 10W per linear foot are offered. White LEDs diffuse 2700K, 3500K, and 4000K light at between 66 and 80 lumens per watt. An RGB LED option is available in 6W per linear foot in 120-degree distribution only. It can be surface-mounted with a fixed or hinged mount, or suspended via an aircraft cable or stem. A remote or integral 120V to 277V dimming power supply is available. An optional rocker switch, diffused flat lens, and diffused direct view dome lens also are offered. Finishes include matte, white, matte black, semi-gloss bronze, semi-gloss natural, and semi-gloss satin. Luminaire is ETL compliant for dry locations. insightlighting.com
