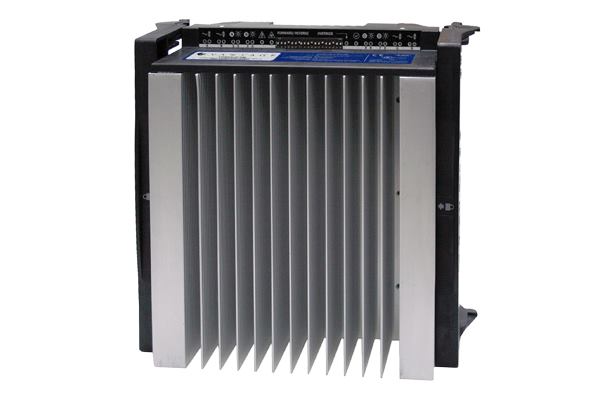

InFusion UDM08-EM, Vantage

Vantage is adding to its line of InFusion controls with a new dimming module for use in residential, hospitality, and light commercial applications. Mounted in a main or secondary power enclosure, this 120V to 277V dimming module controls up to eight universal loads and includes up to four line feeds with 32 maximum amps per load. Features include load-by-load selectable load type, custom-load linearization profiles, and step-free ramping and dimming. In-field plug-and-play installation eliminates the need for field wiring to the module. The module includes built-in protection against current and thermal overload, current sensing for energy management applications, and support for AFCI breakers. Firmware is field upgradable and can notify users of problems via email. The module measures 9.44” long by 7.6” tall by 3.75” deep. vantagecontrols.com
