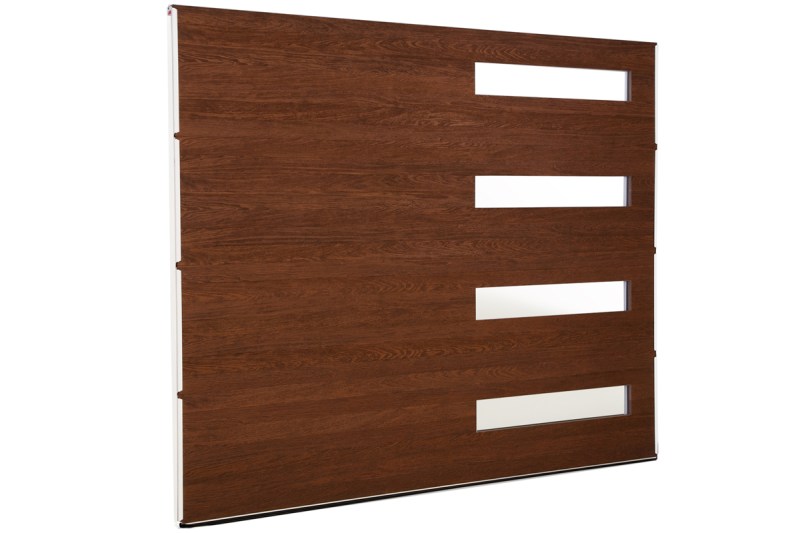

Canyon Ridge Collection Modern Series, Clopay
This collection of garage doors by Mason, Ohio–based door company Clopay are available in sizes up to 10’-tall, and offered in plank, metal inlay, and full-view designs. The doors come with four layers of protection: 3″- or 6″-wide faux-wood composite planks that are resistant to rot and weathering, a steel layer made of 75-percent recycled content, 2″ of Clopay’s proprietary Intellicore polyurethane insulation, and an added steel backing.
Courtesy Clopay
Canyon Ridge Collection Modern Series Full-View Design
The Intellicore foam is injected into the hollow core of the garage door, which then expands to provide an R-value up to 20.4, as well as reduces outdoor noise. The plank design option can be fitted with staggered, impact-rated glass inserts measuring 14″ long by 6″ wide or 35″ long by 6″ wide. The metal-inlay design comes with slim aluminum inserts that stretch all the way across the single or double doors, while the full-view design comes with gridded glass inserts that come in the same two sizes as in the plank design.
Courtesy Clopay
Canyon Ridge Modern Series Metal-Inlay Design
A replaceable vinyl weather seal at the bottom of each door is fastened with a rust-resistant aluminum retainer for exterior protection. The doors also feature 10-ball nylon rollers for silent operation. Cladding is available in five finishes including walnut and primed; glass finish options include clear, frosted, rain, and obscure.
