2017 Product Issue: Tracklighting

Eleven new tracklights offer maximum flexibility no matter the project application.

4 MIN READ

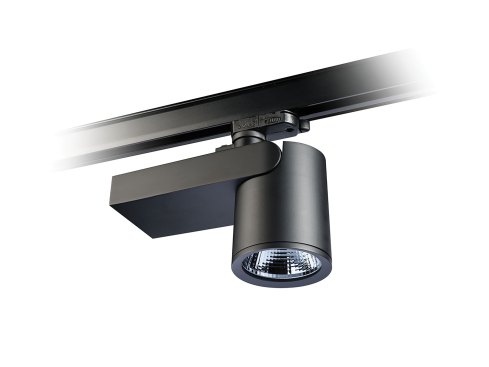

Store, Targetti • This track-mounted LED projector, suitable for retail applications, is housed in a scratchproof-treated, die-cast aluminum optical chamber. The 23W and 37W fixture is available in 3000K and 4000K with a CRI of 84 or 97, depending on the color temperature. The 6.18″-tall luminaire comes with spot, flood, medium-wide flood, and wide flood beam spread options, and can be tilted 90 degrees as well as rotated 355 degrees. Offered in plaster white and deep black finishes, Store is zero-to-10V dimmable. • targetti.us

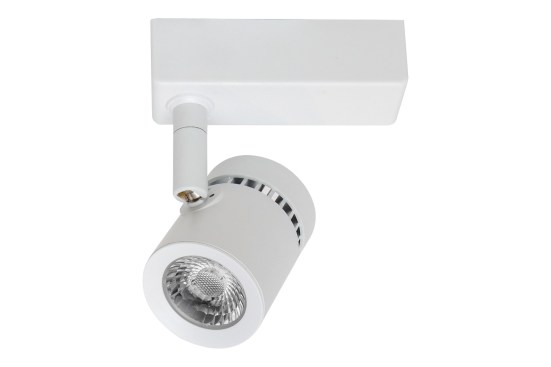

Fundamentals Track, Intense Lighting • This family of LED tracklights comprises six accent and wallwash luminaires for commercial applications. The 14W, 30W, 32W, and 60W fixtures are available in 2700K, 3000K, 3500K, and 4000K—the wallwash is only offered in 3000K—at a CRI of 80, and provide a light output range of 1,400 to 5,450 lumens depending on the fixture model and wattage. The track heads mount on a single- or double-circuit track system, as well as J-type and L-type singles. • intenselighting.com

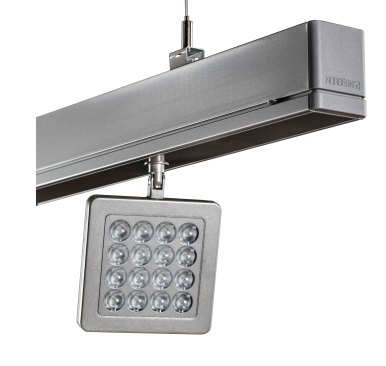

Odin, Nordeon USA • This square LED spotlight offers versatile ambient and accent lighting through Nordeon’s ClickFast system, which allows for toolless installation with the company’s Baldur light line track. The die-cast aluminum head is offered with nine 11W or 22W LEDs, or 16 19W or 38W LEDs. The fixture is available in 2700K, 4000K, and 6000K at a CRI of 80-plus and delivers a range of 1,000 to 1,600 lumens. Fixture finishes include white, black, or silver. • nordeon-usa.com

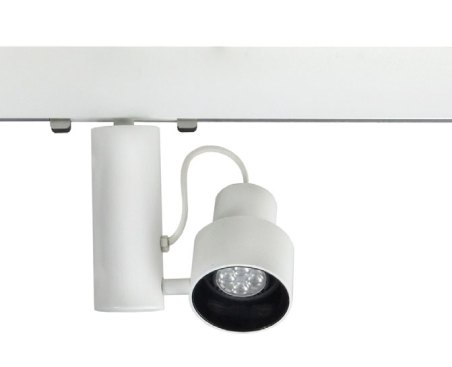

Magic Wand MRE O, Edison Price Lighting • For use in commercial, retail, and residential accent lighting applications, this fixture is designed to be used with 12V MR16 retrofit lamps including Philips’ 6.6W or 7W LEDs, and Soraa’s 6W, 7.5W, or 9W Brilliant or Vivid LEDs. The tracklight comes with a 2.5″-diameter aperture and measures 4.75″ tall with a permanently tensioned, concealed swivel, which allows for 350-degree rotation and 90-degree tilt. The housing is available in four finishes including standard matte white and industrial silver; custom finishes are also available. • epl.com

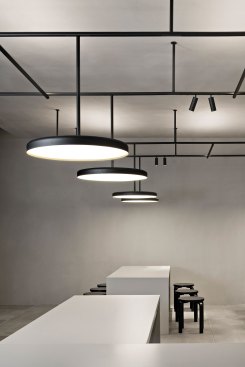

Infra-Structure, Flos Architectural • From Belgian designer Vincent Van Duysen, this family of Bauhaus-inspired fixtures is suitable for ambient lighting and comes in several formats including: pendant luminaires, spot 90 tracking magnet, spot 120 tracking magnet, and downlight. A 24V modular track can be surface mounted in a grid and fitted with the range of 9.6W, 12.5W, 35W, and 36W fixtures available in 3000K at a CRI of 80. • architectural.flosusa.com

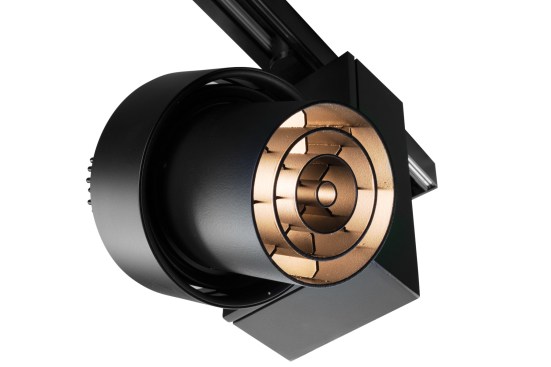

Gala 5 10Ëš, Zaniboni Lighting • Suitable for illuminating artwork and retail spaces, these luminaires can be mounted onto low profile tracks for flexibility. The 13W, 18W, and 26W fixtures are available in 2700K, 3000K, 3500K, and 4000K at a CRI of 80 or 95. Delivering between 762 and 1,856 lumens, depending on the wattage, the 5″-diameter tracklight has a beam distribution of 10 degrees. • zanibonilighting.com

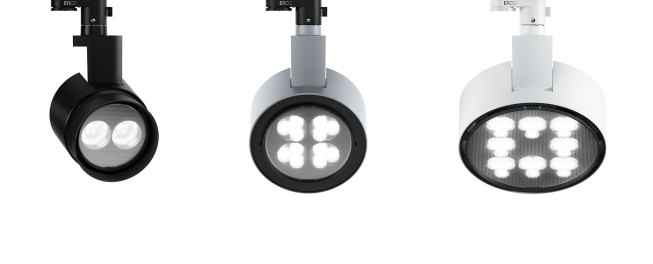

Parscan, Erco • This track-mounted spotlight can illuminate artwork in museums or galleries and becomes a downlight when the fixture head is directed downwards—merging the support bracket and head. The cylindrical fixture is available in 3000K and 4000K and is offered in three lumen packages, ranging from 210 to 6,600 lumens depending on wattage and color temperature. The luminaire offers seven beam spread options including narrow spot, wide flood, and wallwash. • erco.com

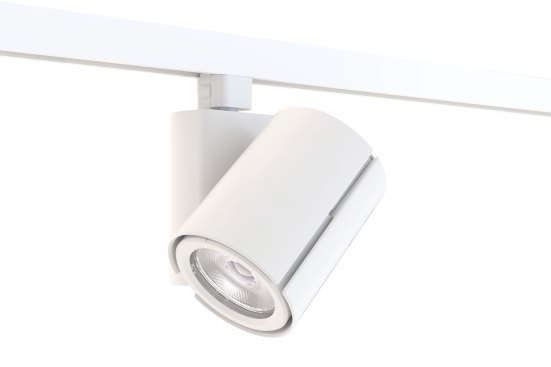

Gravity High Power Track, Intense Lighting • These tracklights are the newest addition to the company’s Gravity collection, and feature TIR optics for greater beam control. Offered in 14W, 20W, 25W, 35W, 39W, and 40W in 2700K, 3000K, 3500K, and 4000K at a CRI of 82 or 92. The luminaires can be adjusted 358 degrees horizontally and 258 degrees vertically. Beam spread options include 14, 24, 36, 50, and 80 degrees. • intenselighting.com

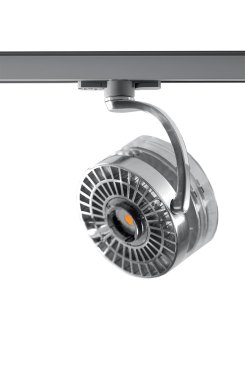

Cata, Artemide • This family of LED projectors uses transparent optics, which can be switched out to provide a range of beam spread options. Comprised of 33W Cata Catadioptric and 22W Cata Tir models, the fixtures are available in 3000K and 4000K at a CRI of 80. Catadioptric is offered in three beam spread options of 10, 14, and 64 degrees; Tir is offered in five beam spread options of 8, 16, 28, and 48 degrees as well as a wallwasher option. • artemide.net

LumeLEX 2020 Series, Lighting Services Inc • This compact 5W fixture is the company’s newest and smallest LED cylinder. It measures 4.25″ long and is available in 2700K and 3000K at a CRI of 90-plus with a light output range of 270 lumens, and a beam spread of 4 degrees. The fixture mounts into a single- or double-circuit 120V track system or onto a canopy. Black, white, and silver finishes are offered. • lightingservicesinc.com

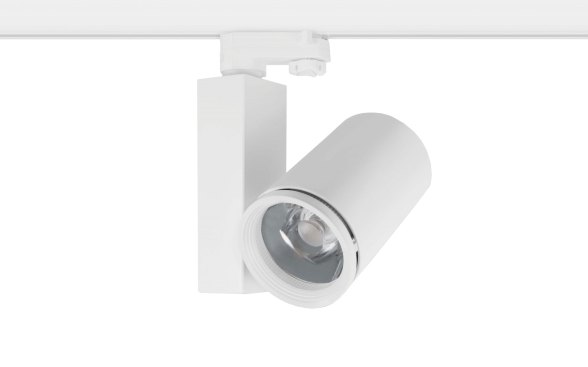

Lumenalpha Spot Small, Lumenpulse Group • Part of the Lumenalpha Collection, this fixture is fully adjustable and intended to replace ceramic metal halide lamps. Measuring 9.18″-tall-by- 3.3″-diameter, it can be specified in 6.5W, 8W, 11W, 17W, and 28W. Available in 2200K, 2700K, 3000K, 3500K, and 4000K at a CRI of 80-plus or 90-plus. • lumenpulsegroup.com
