Award: Kimball Art Center

BIG

2 MIN READ

By Thomas Fisher

February 25, 2013

1 of 14

Courtesy BIG

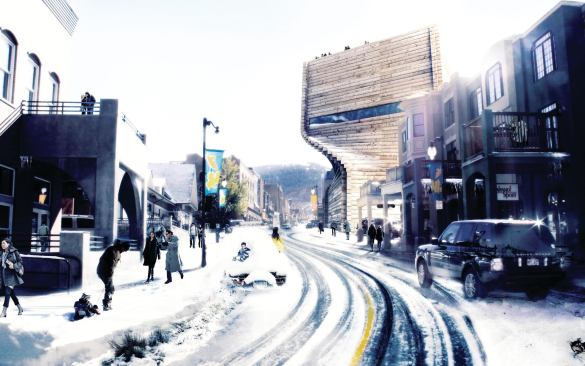

Kimball Art Center

Courtesy BIG

Twisting façade formed from stacked, reclaimed timbers.

Courtesy BIG

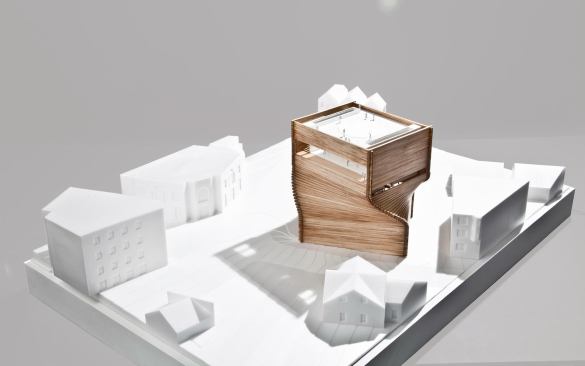

Model

Courtesy BIG

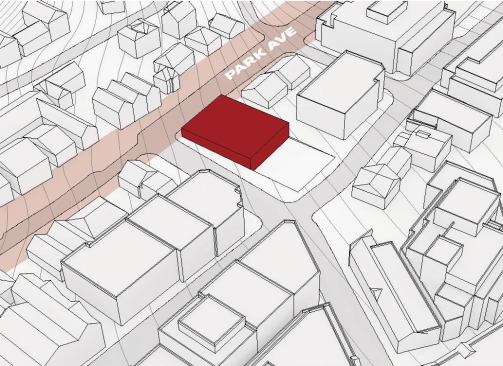

Massing diagram: Existing Kimball Art Center

Courtesy BIG

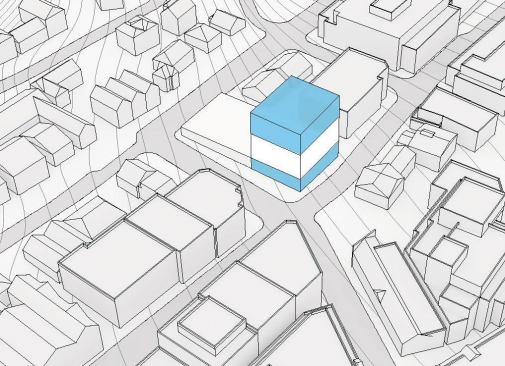

Massing diagram: Two new galleries top out at 80 feet, the heigh… Read More Massing diagram: Two new galleries top out at 80 feet, the height of the historic Coalition Building, which was, until it burned down in the 1980s, Park City's tallest building.

Courtesy BIG

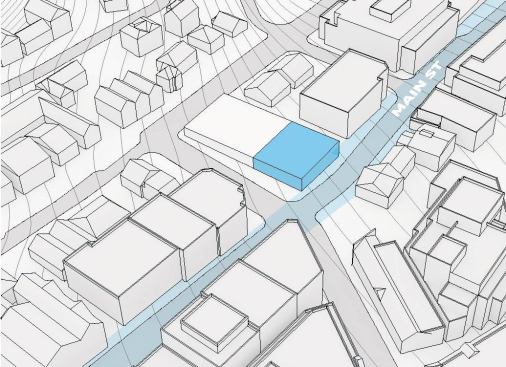

Massing diagram: Street-level gallery, which is oriented to the … Read More Massing diagram: Street-level gallery, which is oriented to the city's existing grid.

Courtesy BIG

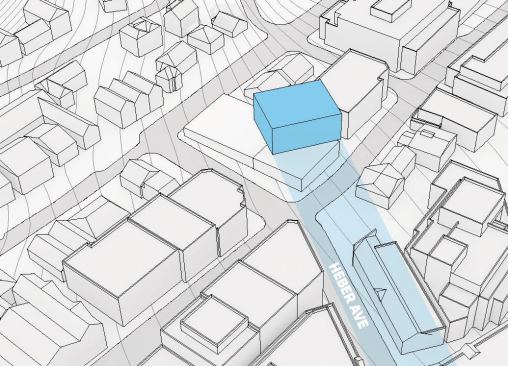

Massing diagram: Sky Gallery, which is oriented toward Heber Ave… Read More Massing diagram: Sky Gallery, which is oriented toward Heber Avenue, the more recent gateway to the city.

Courtesy BIG

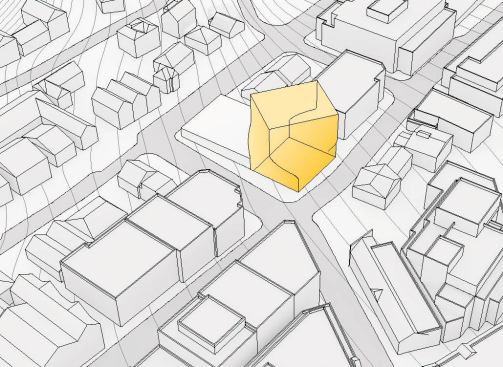

Massing diagram: Twisting volume that accomodates directional sh… Read More Massing diagram: Twisting volume that accomodates directional shift

Courtesy BIG

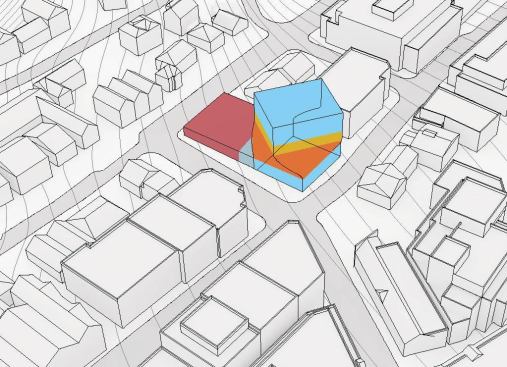

Massing diagram: Program, identifying the restaurant and adminis… Read More Massing diagram: Program, identifying the restaurant and administrative spaces sandwiched between the two new galleries, and the education spaces housed in the existing art center structure.

Courtesy BIG

Interior.

Courtesy BIG

Interior stair leading to upper levels.

Courtesy BIG

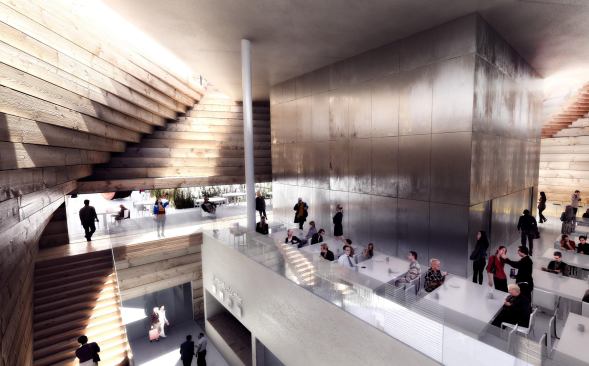

Restaurant, overlooking the lobby space below.

Courtesy BIG

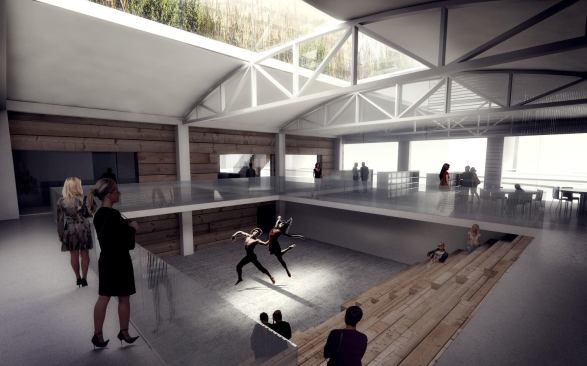

Performance venue.

Courtesy BIG

Gallery

Site At the center of Park City, Utah, adjacent to the existing Kimball Art Center, where Main Street intersects Heber Avenue, a gateway to the city.

Program A 30,000-square-foot renovation and addition containing administrative offices, educational rooms, galleries, dining facilities, and support areas, with 6,000 square feet of accessible roof space.

Solution Alluding to the mining history of Park City, with its log buildings and mine enclosures, this six-level addition to a newly renovated art center features a log envelope that twists as it rises from its rectangular site to face visitors as they enter the city on the diagonal axis further up Heber Avenue. The addition’s 80-foot height matches that of the city’s iconic Coalition Building, which burned to the ground in 1982.

The stacked, 20-inch-square timbers, pinned together with steel rods, support an interior log stair that twists its way up to the green roof. Operable skylights induce stack-effect ventilation and illuminate the log walls, recalling the area’s former timber-lined mine shafts. An internal steel frame reinforces the log enclosure and supports an inner structure of temperature-controlled offices and exhibition spaces, while the concrete shear walls in the elevator-and-stair core resist seismic and wind loads. A dining area overlooks a new terrace on the roof of the existing art center, whose renovation includes education and exhibition spaces surrounding a central, two-story performance stage.

The jurors all responded to different parts of the building. Juror Joan Soranno admired the Piranesi-like interior, which she called “really, really beautiful.” Juror Reed Kroloff praised the “twisting form, which goes over the street,” to which juror John Frane added, “a log does that better than a lot of other materials we’ve seen twisting.” And the uncanniness of the exterior led juror Steven Ehrlich to exclaim, “I wish my Lincoln Log set had done that!”

Renovation and Expansion of Kimball Art Center
Location Park City, Utah
Client Kimball Art Center
Architect BIG, Copenhagen—Bjarke Ingels, Thomas Christoffersen (partners-in-charge); Leon Rost (project leader); Terrence Chew, Suemin Jeon, Chris Falla, Andreia Teixeira, Ho Kyung Lee (design team)
Consultants Architectural Nexus, Dunn Associates, Van Boerum & Frank Associates, Envision Engineering, Big D Construction
Size 30,000 square feet
Cost Withheld
